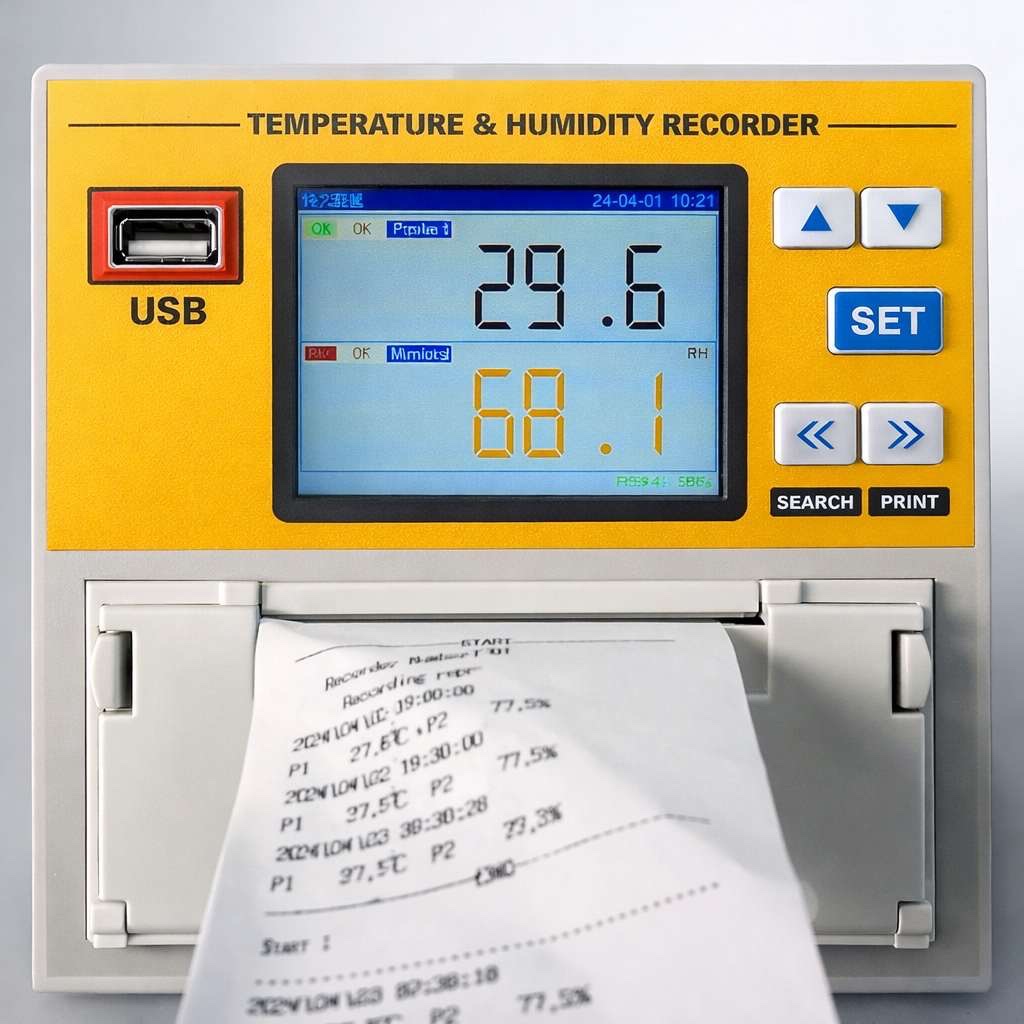

Temperature And Humidity Data Logger with Printer,Temperature & Humidity Recorder with Integrated Printer

1.Key Features

Simultaneous Temperature & Humidity Monitoring

Large Data Storage Capacity

Clear LCD Display with Multi-Information View

Multiple Data Printing Modes

RS485 Networking for Multi-Point Monitoring

Professional PC Software for Data Analysis

Integrated Buzzer & Relay Alarm Output

Rechargeable Backup Battery for Power Failures

2.Technical Parameters

Power supply: AC/DC 12V-24V, 15W

90-264VAC, 50/60Hz

Temperature measurement range: -50.0 ℃~120.0 ℃

Temperature measurement accuracy: -30 ℃~+20 ℃, accuracy ± 0.5 ℃

-40 ℃~-20 ℃, accuracy ± 1 ℃

20 ℃~70 ℃, accuracy ± 1 ℃,

accuracy ± 2 ℃ for other temperature ranges

Temperature sensor type: NTC, line length 5 meters,

Humidity measurement range: 0~95% RH

Humidity display resolution: 0.1

Recording cycle: 1 minute~24 hours can be continuously set

Applicable environment of the recorder: temperature -20 ℃~50 ℃; Relative humidity 0%~90%

Alarm output: buzzer and relay alarm

Communication interface: RS485 interface

Backup battery: 3.6V capacity 2500mAH lithium-ion battery
