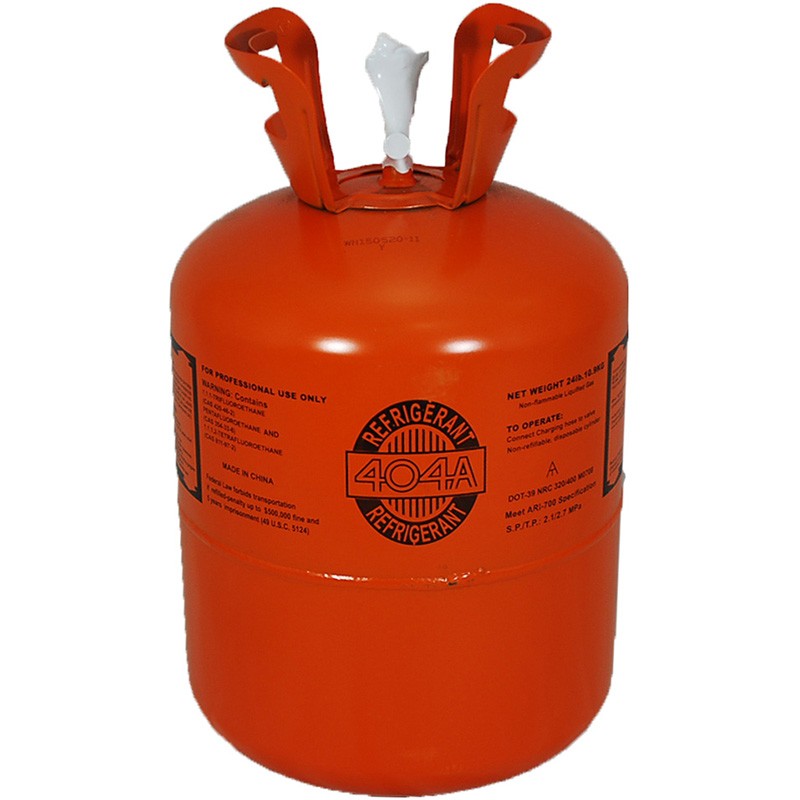

R-404A
Note: Truck load can be mixed to make a truck or mixed to make one pallet.

Application/Description:
R-404A is a blend of HFC refrigerants, R-125, R-143A and R134A, commonly used for medium and low temperature refrigeration applications and offers excellent capacity and efficiency as a replacement for R-502 and R-22 in new and existing R-502 equipment. Most new supermarkets and refrigeration equipment are built for an HFC such as R404A. R404A has lower pressure than R502. Requires polyester lubricant. If retrofitting existing equipment, the original oil must be replaced with POE. It is non toxic and non flammable meeting the highest A1 Classification.

Product Name
R-404A
Available Sizes
Disposable cylinder: 24lb/10.9kg
Can:650G
Refillable cylinder: 12L, 60L, 926L, ISO TANK

Chemical Name: R-143A (52%), R-125 (44%), R-134a (4%)
Chemical Formula: Blend
Refrigerant Class: HFC
Refrigeration Oils: Polyolester (POE)
Net Weight: 24 lbs. / 100 lbs.
Molecular Weight: 97.6
Boiling Point: (1 atm, °F): -51.8
Critical Pressure: (psia): 548.2
Critical Temperature: (°F): 162.5
Critical Density: (lb./ft³): 35.8
Liquid Density: (70°F lb/ft³): 66.4
Vapor Density: (bp, lb./ft³): 0.342
Heat of Vaporization: (bp, BTU/lb.): 86.1
Specific Heat Vapor: (1 atm, 70°F, BTU/lb. °F): 0.2077
Specific Heat Liquid: (70°F, BUT/lb. °F): 0.3600
Ozone Depletion Potential: (CFC 11=1.0): 0
Global Warming Potential: (CO2=1.0): 3920
ASHRAE Standard: 34 Safety Rating: A1
Temperature Glide: (°F): 2
